MEB(CL23X) Metallized Polyester Film Capacitor (Mini-BOX)

Product Features Product Specifications Product Certification

MEB(CL23X) Metallized Polyester Film Capacitor (Mini-BOX)

金属化聚酯薄膜电容器（小型盒式）

★ FEATURE	特点：
Small size	体积小
Low loss and good stability	损耗小，稳定性好
Long life due to excellent self-healing	自愈性好，寿命长
★APPLICATION	用途：
Widely used in couping,filter,noise-suppression bypass of DC and pulse circuits in all kinds of machines	适用于投资类和消费领域整机的耦合、滤波、降噪、旁路等直流和脉冲电路等

★SPECIFICATIONS技术要求：

DIELECTRIC

介质

Polyester film

聚酯薄膜

ELECTRODES

电极

Vacuum evaporated metal

真空蒸镀金属

COATING

包封

Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0，

UL94V-0盒子并用环氧树脂封装

LEADS

导线

Radial leads of tinned wire

径向镀锡导线

REFERENCE STANDARD

引用标准

GB7322；IEC60384—2

CLIMATIC CATALOGUE

气候类别

40/85/21 (From 85℃ up to 105℃ with derating voltage 1.25%/℃)

(85℃至105℃间按1.25%/℃递减电压)

CAPACITANCE VERSUS

RATED VOLTAGE(U_R)

静电容量与额定电压

0.0010μF-1.0μF/50VDC、63VDC

0.0010μF-0.68μF/100VDC

0.0010μF-0.15μF/250VDC

CAPACITANCE TOLERANCE

静电容量误差

M=±20% K=±10% J=±5%

DISSIPATION FACTOR

（TANGENT OF LOSS）

散逸因素（损耗角正切）

≤1.0% （at 20℃,1KHz）

VOLTAGE PROOF

耐电压

1.6*UR Unit:VDC (5s at 20℃)

INSULATION RESISTANCE

绝缘电阻

C≤0.33μF, IR≥5000MΩ; C＞0.33μF, IR*C≥3000S

UR≤100V Testing by 50 V; UR＞100V Testing by 100 V

（1minute at 20℃ and RH≤65%）

ENDURANCE

耐久性

1000 hours with 125% of rated voltage at 85℃.After the test:

85℃条件下，125%之额定电压1000小时。试验完成后：

△C/C≤5%；△DF≤0.20%

C≤0.1μF，IR≥9000MΩ C＞1μF

IR≥50% of the specified value （标称值）. （20℃ 1KHz）

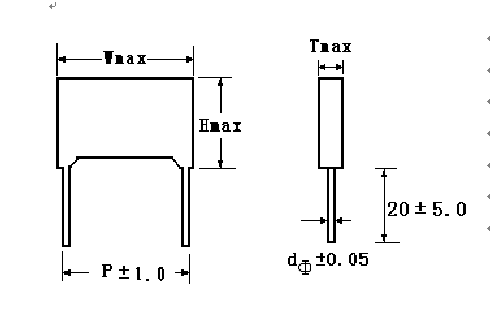

OUTLINE DRAWING 外观图 ★ PICTURE 实物图

★DIMENSIONS 尺寸 UNIT单位:mm

capacitance		50/63VDC					100VDC					250VDC
symbol	uF	W	H	T	P	dφ	W	H	T	P	dφ	W	H	T	P	dφ
102	0.0010	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
122	0.0012	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
152	0.0015	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
182	0.0018	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
222	0.0022	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
272	0.0027	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
332	0.0033	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
392	0.0039	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
472	0.0047	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
562	0.0056	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
682	0.0068	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
822	0.0082	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
103	0.010	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
123	0.012	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
153	0.015	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
183	0.018	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
223	0.022	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5
273	0.027	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5

333	0.033	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5
393	0.039	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5
473	0.047	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
563	0.056	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
683	0.068	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
823	0.082	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	10.0	5.0	5.0	0.6
104	0.10	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5	7.2	10.0	5.0	5.0	0.6
124	0.12	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
154	0.15	7.2	7.5	3.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
184	0.18	7.2	7.5	3.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
224	0.22	7.2	7.5	3.5	5.0	0.5	7.2	10.0	5.0	5.0	0.6
274	0.27	7.2	9.5	4.5	5.0	0.6	7.2	10.0	5.0	5.0	0.6
334	0.33	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
394	0.39	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
474	0.47	7.2	10.0	5.0	5.0	0.6	7.2	11.0	6.0	5.0	0.6
564	0.56	7.2	10.0	5.0	5.0	0.6	7.2	11.0	6.0	5.0	0.6
684	0.68	7.2	11.0	6.0	5.0	0.6	7.2	11.0	6.0	5.0	0.6
824	0.82	7.2	11.0	6.0	5.0	0.6
105	1.0	7.2	11.0	6.0	5.0	0.6

SPECIAL SIZE OR ITEMS ON REQUEST)可依需求制作特殊规格

You may download more details for it here

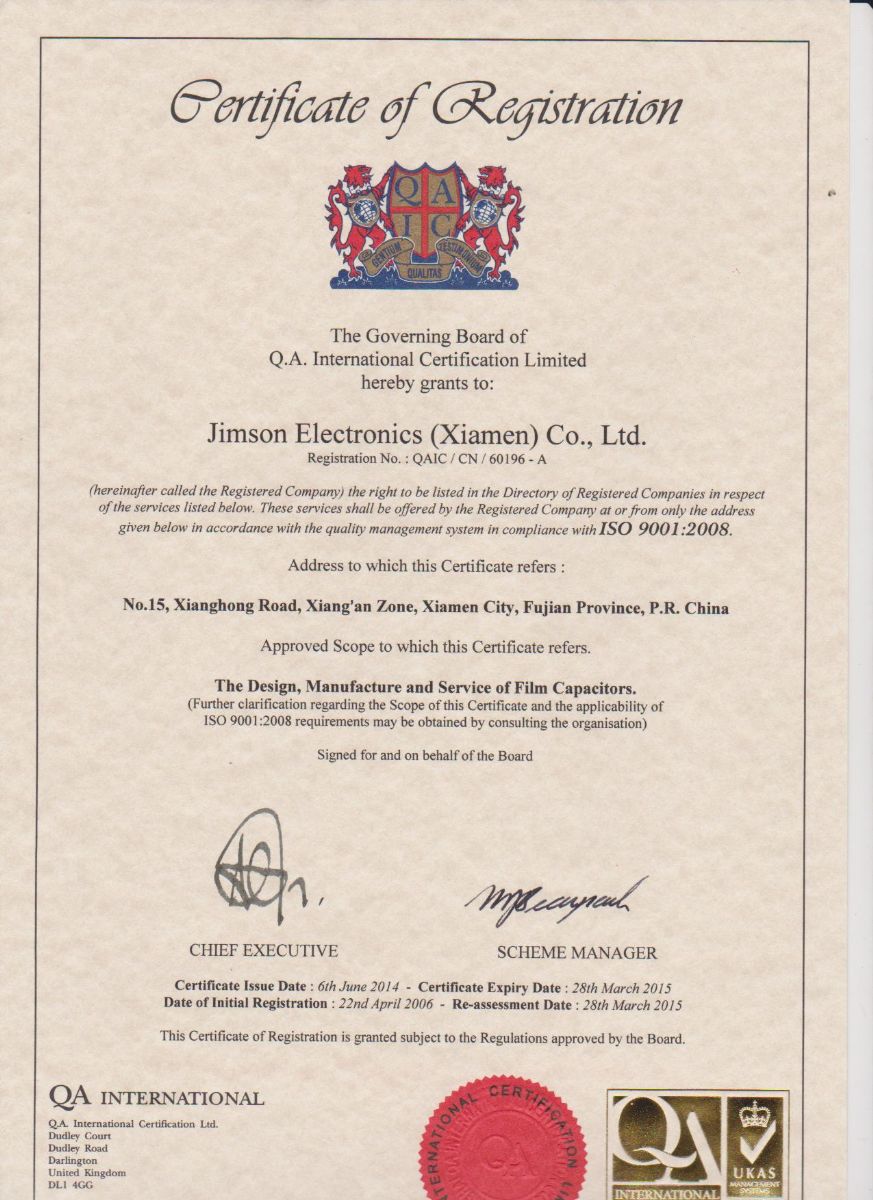

ISO9001 EN

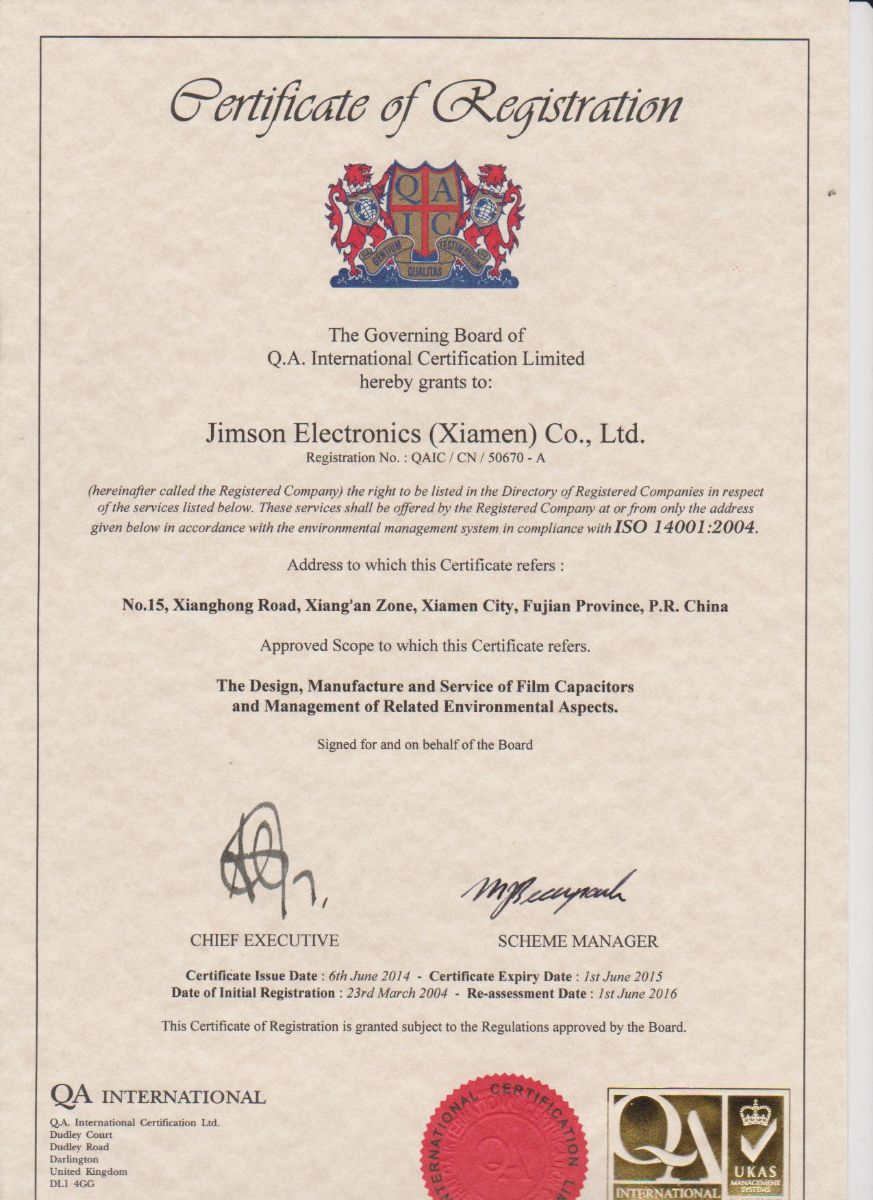

ISO14000EN
